Description

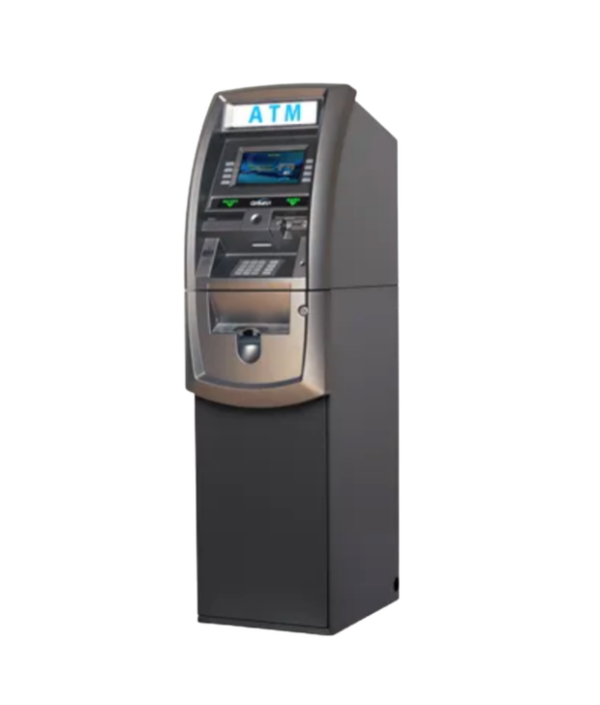

GM2500 with 8″ LCD Screen
The G2500 comes standard with an 8″ high-resolution wide-screen LCD, which can be upgraded to a 10.2″ touch screen. The receipt printer can also be upgraded to a 3″ graphics-capable for custom branding or coupons. The integrated topper can also be paired with a selection of energy-efficient LED toppers to add visual impact and attract customers.
In addition to the fixed, removable and multi cash cassette dispenser options offered by Genmega, the G2500 can also support cash dispensers from other equipment suppliers, providing more flexibility and upgrade options for existing deployments.
Dimensions
- Height = 56.3”
- Width = 15.8”
- Depth = 22.3”
- Weight = 222 lbs. (Without cash dispenser)
Power Requirements
- 110/220 VAC ±10%, 50/60 Hz, 145 Watts
Temperature Requirements
- In storage: 32°F – 104°F (0°C ~ 49°C)
- While operating: 45°F – 95°F (5°C ~ 35°C)
Allowable Humidity
- In storage : 10% < RH < 90%, non-condensed
- While operating : 15% < RH < 85%, non-condensed
Topper
- Optional LED Topper Sign
- Can accept custom inserts
Integrated Illuminated Sign
- High Visiblility LED Sign
- Attract Customers
LCD Screen
- 8 inch diagonal 32-bit color
- Backlit TFT LCD panel
- 800×480 Resolution
- 10.2 inch touch-screen (Optional)
- Customizable Ad Screens
Printer
- 56mm (2″ standard)
- 80mm (3″ optional)
- Graphics Capable with 3″
PIN Entry Device
- 16-key alphanumeric keypad
- PCI/Interac Certified
- Triple-DES (TDES) compliant EPP
Communication
- 56Kb Internal Model
- TCP/IP Ethernet – SSL
CPU
- Cortex-A8 CPU (800MHz)
- DDR2 256MB SRAM memory
- 512MB Flash Memory
- Windows CE 6.0
Card Reader
- DIP Type card reader
- EMV Optional
ADA
- Voice Guidance
- Lighted Transaction Guidance
- Accessible Keypad Layout
Security
- UL291 Business Hours Vault
- Dial or Electronic Lock
Cash Dispenser
- 1000 Note Removable Cassette (SCDU)
- Up to 4 x 2000 Note Removeable Cassette (HCDU)
