Description

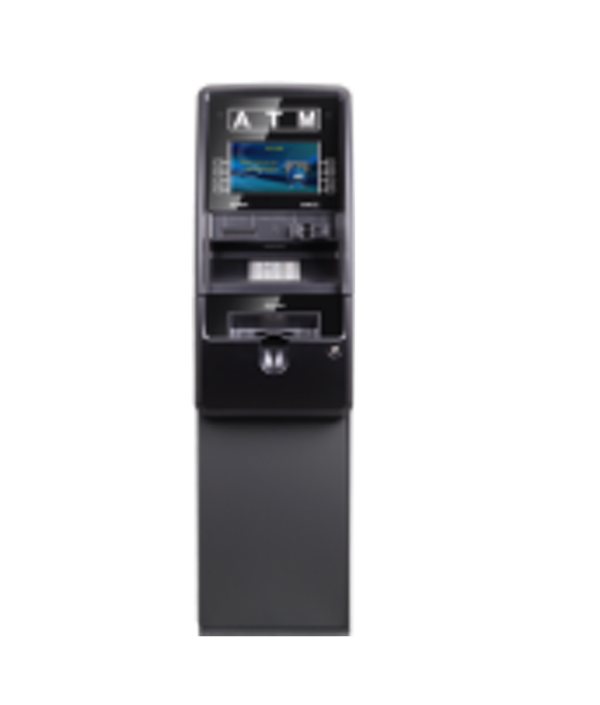

GM Onyx with 10.2″ Wide Screen
Boasting a 10.2 wide screen, or an optional 12” touch screen, a security reflective front, and touch keypad, the Onyx provides the future of ATM technology. The strong cabinet, tough exterior and security enhancements, however, make it durable enough for any location. An optional 3” printer upgrade allows for graphics and couponing to complete a full ATM product offering.
With all of the cassette options, and a presenter option, the Onyx is a flexible solution to meet a locations needs. The Onyx supports all Genmega CDUs and other manufacturer as well, giving a wide variety of dispenser options to tailor the solution to the location.
Topper
- Optional LED Topper Sign
- Can accept custom inserts
Integrated Illuminated Sign
- High Visiblility LED Sign
- Attract Customers
LCD Screen
- 10.2 inch wide 32-bit color
- Backlit TFT LCD panel
- 1280×800 Resolution
- 12 inch touch-screen (Optional)
- Customizable Ad Screens
Printer
- 56mm (2″ standard)
- 80mm (3″ optional)
- Graphics Capable with 3″
PIN Entry Device
- 16-key alphanumeric keypad
- PCI Certified
- Triple-DES (TDES) compliant EPP
Communication
- 56Kb Internal Model
- TCP/IP Ethernet – SSL
CPU
- Cortex-A8 CPU (800MHz)
- DDR2 256MB SRAM memory
- 512MB Flash Memory
- Windows CE 6.0
Card Reader
- DIP Type card reader
- EMV Optional
ADA
- Voice Guidance
- Lighted Transaction Guidance
- Accessible Keypad Layout
Security
- UL291 Business Hours Vault
- Dial or Electronic Lock
Cash Dispenser
- 1000 Note Removable Cassette (SCDU)
- Up to 4 x 2000 Note Removable Cassette (HCDU)
Dimensions
- Height = 56.4”
- Width = 15.8”
- Depth = 22.3”
- Weight = 223 lbs. (Without cash dispenser)
Power Requirements
- 110/220 VAC ±10%, 50/60 Hz, 145 Watts
Temperature Requirements
- In storage: 32°F – 104°F (0°C ~ 49°C)
- While operating: 45°F – 95°F (5°C ~ 35°C)
Allowable Humidity
- In storage : 10% < RH < 90%, non-condensed
- While operating : 15% < RH < 85%, non-condensed
